High-end BYD Lithium Battery Powered 23 Seater Shuttle Bus
23 Seats Electric Powered Shuttle Bus with BYD Lithium Battery
23
Seats
30km/h
Speed
30%
Gradeability
15-30
AC Motor
The Ultimate Choice for Passenger Shuttle！
• Foton Permanent Magnet Synchronous Motor 30KW
• BYD Lithium Iron Phosphate Battery 332.8V135AH
• BYD High-voltage Distribution Unit 3-in-1 Controller
• MOQ: 1
If you want to customize electric shuttle buses with less than 23 seats, welcome to send us your requirements.
| Item | High-end Lithium Battery Shuttle Bus | ||
| Overall dimensions L*W*H (mm) | 5900×1930×2260 | ||
| Seats (including driver) | 23 | ||
| Tread (Front/Rear) (mm) | 1600/1610 | ||
| Wheelbase (mm) | 3400 | ||
| Total Weight (kg) | 1950 | ||
| Max. Speed (km/h) | 30 | ||
| Min. Turning Radius (mm) | 8500 | ||
| Suspension System | Bus-level front/rear longitudinal leaf springs + hydraulic damping shock absorption | ||
| Wheel Assembly | 185/65R15LT 12PR Radial Tubeless Tire | ||
| Steering System | Recirculating ball steering gear, with ESP electronic power steering | ||
| Braking System | Front disc and rear drum, dual-circuit hydraulic brake, | ||
| Brake Vacuum Assist | Standard Equipped | ||
| Frame | 120x50mm double longitudinal beam welded frame, higher strength, safer and more reliable; using automotive coating electrophoresis technology, anti-corrosion standards reach automotive levels. | ||
| Lights | combination headlights (turn, high and low beam lights with lenses, LED daytime running lights) | ||
| Seat | Independently adjustable soft seat for the driver, optional high-resilience sponge + leather-wrapped split row seats/fiberglass bus seats for passengers | ||
| Motor | Fengchuan Power Permanent Magnet Synchronous Motor 15KW | Fengchuan Power Permanent Magnet Synchronous Motor 23KW, Liquid Cooling | Foton Permanent Magnet Synchronous Motor 30KW, Liquid Cooling, IP67 |
| Battery | Lithium Iron Phosphate Battery 96V280AH, Rated Capacity 26.88KWH | Lithium Iron Phosphate Battery 144V230AH, Rated Capacity 33.12KWH | BYD Lithium Iron Phosphate Battery 332.8V135AH, Rated Capacity 44.9KWH |
| Controller | Fengchuan Power Intelligent Motor Controller with Transmission Controller | Fengchuan Power Intelligent Motor Controller, Liquid Cooled, with Transmission Controller | BYD high-voltage distribution unit three in one, liquid cooling, IP67, working environment temperature suit: -40 °~65 ° |
| Charger Power & Charging Time | 2.88KW/10h | 4.3KW/8h | 6.6KW/7h (National standard fast and slow charging plug, fast charging can charge 80% in 50min, fully charged in 2h) |
| Rear Axle | Semi floating, automatic two speed ratio 29.82/15.06 | Full floating commercial vehicle rear axle. Reduction ratio 12.94 | |
| Max Gradeability | Continuous climbing of 17% (speed of 10km/h), maximum slope of 22% | Continuous climbing of 22% (speed of 10km/h), maximum slope of 22% | Continuously climb 25% (speed of 16km/h), maximum slope of 30% |
| Speed Regulation Method | Stepless Speed Change | ||
| Full Load Range (km) | 100 (On flat roads and at normal temperatures ) | 150 (On flat roads and at normal temperatures ) | 260 (On flat roads and at normal temperatures ) |
DETAIL DISPLAY
Environmental Performance
The shuttle bus aims at zero emission and completely reduces the emission of greenhouse gases and harmful exhaust gases. Compared with traditional fuel vehicles, this electric shuttle bus greatly reduces the pollution to the environment, complies with the current environmental protection regulations and standards promoted globally, and is an important measure to reduce urban air pollution.

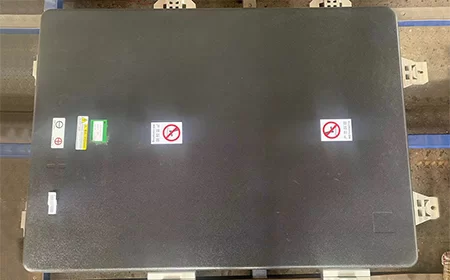

BYD Battery Technology
The shuttle bus is equipped with BYD's leading lithium battery technology with high energy density and long service life. The battery system has been rigorously tested to ensure stable performance under various extreme conditions. In addition, fast charging technology enables the vehicle to resume endurance in a short time, reduce downtime and improve operational efficiency.

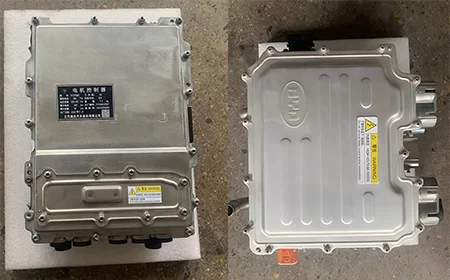

Other BYD Parts
The shuttle bus adopts BYD permanent magnet synchronous water-cooled motor and BYD three-in-one intelligent controller as the core of its bus control components, with more advanced design and manufacturing technology. With its high efficiency, reliability, intelligence, and environmental protection characteristics, it provides strong power and excellent control performance for electric buses.

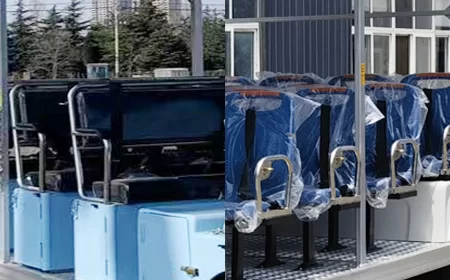

High Ride Comfort
The BYD 23-seat shuttle bus focuses on the passenger's riding experience and is equipped with advanced safety seats with optional materials, spacious interior space and multi-functional interior accessories. The reasonable interior layout ensures that every passenger can enjoy a comfortable seat and sufficient legroom, suitable for long and short distance travel.
Higher Economic Benefits
Although the initial purchase cost is a little high, these shuttle buses will show significant economic benefits in long-term use. Electricity costs are lower than fuel costs, and motors require less maintenance, further reducing total operating costs. At the same time, environmental advantages can also bring potential policy subsidies and tax incentives, making it an ideal choice for various transportation companies.
