1-2 Ton Electric Mini Cargo Truck with Single Row Seat
Light Duty 1-2 Ton Commercial Electric Cargo Truck
35km/h
Speed
2
Seats
20%
Gradeability
4-5KW
Universal Motor
Light & Flexible, The Leader in Urban Freight Transportation
• High Strength Riveted Carbon Steel Base Frame
• Equipped with Truck-specific Light-duty Tires
• Front & Rear Longitudinal Leaf Springs
• MOQ: 1
We also accept OEM and ODM orders for electric mini cargo truck. Welcome to send us your requirements.
| Item | 1-2 Ton Electric Mini Cargo Truck with Single Row Seat | |||
| Model | FT1102 | FT1021PA | FT1021PC | |
| Size L*W*H (mm) | 3935×1550×1800 | 3950×1508×1896 | 4550×1570×1900 | |
| Seats (Including driver) | 2 | 2 | 2 | |
| Dump Bed Size (mm) | 2500×1460×330 | 2495×1410×320 | 3140×1570×330 | |
| Rated Load Capacity kg | 1000 | 1000 | 2000 | |
| Front/Rear Wheelbase (mm) | 1220/1260 | 1265 | 1265/1180 | |
| Tread (mm) | 2140 | 2240 | 2566 | |
| Vehicle Weight (kg) | 1150/900 | 1250 | 1650 | |
| Max Speed (km/h) | 37/40 | 35 | 30 | |
| Max. Gradeability (%) | 15/20 | 20 | 20 | |
| Min. Turning Radius (mm) | 6500 | 6500 | 5500 | |
| Front/Rear Suspension | Front & Rear Longitudinal Multi-plate Leaf Spring | |||
| Rear Axle | Speed ratio: 10.25 | Integrated Fully Floating | Speed ratio: 5.375 | |
| Wheel | 5.50-13LT-8PR Steel Wheel Hub | 5.50-13LT-8PR Steel Wheel Hub | 6.0-13LT-8PR Steel Wheel Hub | |
| Steering System | Circulating Ball Steering Machine | |||
| Brake | Front and Rear Drum Type, Hydraulic Brake | |||
| Brake Vacuum Assist | Installed | |||
| Base Frame | Riveted, Double Stringers | |||
| Lights | CCC Headlight | |||
| Seats Type | Independent Seats | |||
| Motor | AC 4kw | Universal 5kw | Universal 5kw | |
| Battery | 60V 210 AH/72 V120 AH Lead Acid Maintenance-free | 170AH Lead Acid Maintenance-free | ||
| Electric Control | Universal | |||
Detail Display
Stable Chassis Frame
The chassis of the truck adopts the same model as the Foton Yuling microcar chassis, with a high-strength riveted frame. The double longitudinal beams of the frame are made of 50x4mm thick carbon steel plates, which have stable and reliable performance and strong load-bearing capacity.

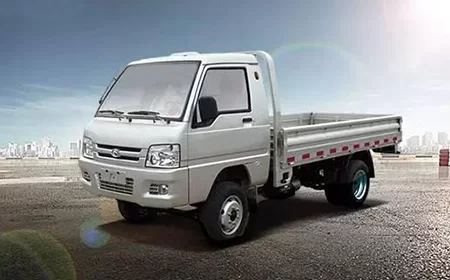

Beautiful and Durable Body
This electric light cargo truck body adopts a full sequence metal body, using sedan car level "cathodic electrophoretic" paint baking technology, with high penetration rate, strong adhesion, corrosion resistance, and beautiful appearance.
Front Rear Longitudinal Leaf Springs
The cargo truck adopts a suspension system with front and rear longitudinal leaf springs, which lowers the overall center of gravity of the vehicle, increases its cargo carrying capacity, and makes the driving more stable, bringing a driving experience like a sedan car.

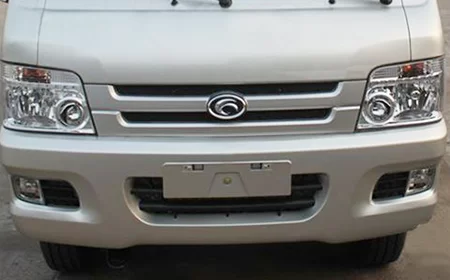

Integrated Headlight Design
The electric cargo truck adopts integrated headlights, and the shape of the headlights also matches the square front face of the truck. Adopting sedan style rearview mirrors reduces the width of the vehicle. The overall design of the truck looks compact and does not lose its sense of lines.

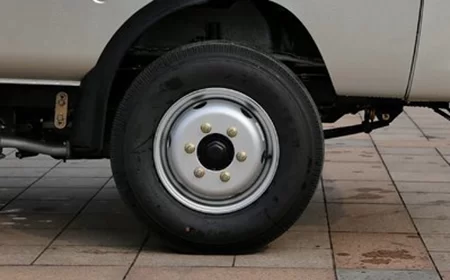

Equipped with Light-duty Tires
Hulk Vehicle's electric light cargo trucks are all equipped with light-duty truck tires, which can fully ensure the vehicle's load-bearing capacity. The tire specification with "LT" indicates that the tire is a light truck tire, also known as a light duty tire.
Customer’s Review
Craig Titsworth
2024.03.27
After using them for a week, I would say they are great electric mini cargo trucks. The driving experience is great, very steady and good quality. I use them to move fodder on my farm. They can be used at night too as it comes with the headlight. Very convenient.
