Cost-effective 11-14 Seater Minibus Electric Shuttle Bus
11-14 Passengers Affordable Electric Shuttle Bus for Sale
11-14
Seats
30km/h
Speed
15%-35%
Gradeability
7.5-10KW
AC Motor
Powering Your Journey, Silently and Eco-friendly
• High-strength & Corrosion-resistant Base Frame
• Equipped Standard Electronic Power Steering System
• MacPherson Independent Suspension & Mechatronic Rear Axle
• MOQ: 1
We also accept OEM and ODM orders for electric shuttle buses with specified number of seats. Welcome to send us your requirements.
| Size | Item | AHGD-KDH Electric Shuttle Bus | |||
| Model | AHGD-KDH-11 | AHGD-KDH-14 | |||
| Seats (Including driver) | 11 | 14 | |||
| L*W*H (mm) | 4530*1580*2000 | 5180*1580*2000 | |||
| Wheelbase (mm) | 2660 | 2660 | |||
| Tread (mm) | 1340/1320 | 1340/1320 | |||
| Total Weight (kg) | 1250 | 1380 | |||
| Performance | Max Speed (km/h) | 30 | 30 | ||
| Min. Turning Radius (mm) | ≤6000 | ≤6000 | |||
| Max. Gradeability | 15% | Continuous Climbing Slope: 30% (Speed: 8km/h), Maximum Impact Slope: 35% | 15% | Continuous Climbing Slope: 30% (Speed: 8km/h), Maximum Impact Slope: 35% | |
| Configuration | Motor (kw) | 7.5kw AC | 10KW Permanent Magnet Synchronous Motor | 7.5kw AC | 10KW Permanent Magnet Synchronous Motor |
| Battery (V Ah) | Maintenance-free Lead-acid Batteries 6V 200Ah x 12Units | Lithium Iron Phosphate 72V200AH, Rated Energy 15.3kwh | Maintenance-free Lead-acid Batteries 6V 200Ah x 12Units | Lithium Iron Phosphate 72V200AH, Rated Energy 15.3kwh | |
| Control | Enpower AC Control | Fengchuan Power Intelligent Motor Controller with Transmission Controller | Enpower AC Control | Fengchuan Power Intelligent Motor Controller with Transmission Controller | |
| Brake | Front Disc and Rear Drum Hydraulic Brake | ||||
| Suspension | Front MacPherson, Rear Longitudinal Multi-plate Leaf Spring | ||||
| Rear Axle | Integrated Fully Floating, Reduction Ratio 17.79:1 | Semi Floating, Automatic Two Speed Ratio 29.82/15.06 | Integrated Fully Floating, Reduction Ratio 17.79:1 | Semi Floating, Automatic Two Speed Ratio 29.82/15.06 | |
| Wheel | 165/70R13LT 8PR Layer Vacuum Load-bearing Tire 5-Hole Steel Wheel Hub | ||||
| Seat Material | The driver: independently adjustable soft seat; Passengers:high-resilience sponge + leather-wrapped split-row seats or fiberglass seats. | ||||
| Electronic Power Steering | Gear and Rack Type, with ESP Electronic Steering Assistance | ||||
| Floor | Leather/Aluminum Alloy | ||||
| Safety Belt | Essential | ||||
| Tachograph | Optional | ||||
DETAIL DISPLAY

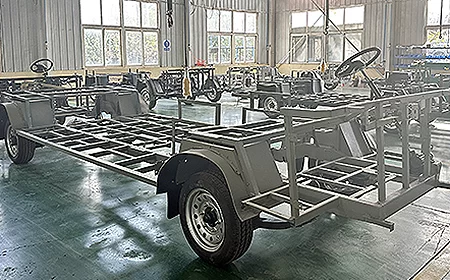

High-strength & Corrosion-resistant Base Frame
The shuttle bus adopts a high-strength and corrosion-resistant base frame. The main beam of the frame is made of 100X50mm large-section rectangular tubes, which are stamped as a whole. The longitudinal beam of the frame is tightly welded to the cross beam, and the pressure bearing capacity of the bus is stronger.

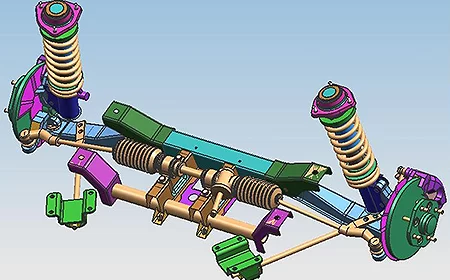

Advanced MacPherson Independent Suspension
Hulk Vehicle's Electric Shuttle Bus adopts MacPherson independent suspension, with the left and right wheels independently connected to the frame. This not only simplifies the structure, reduces weight, but also reduces body tilting and vibration, which is beneficial for improving driving stability of the bus.

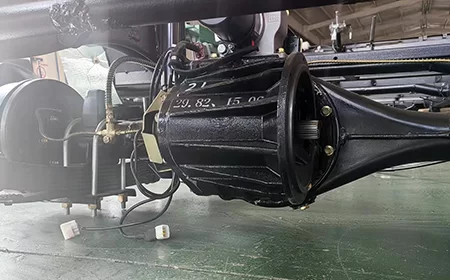

High Efficiency Mechatronic Rear Axle
The shuttle bus uses an electromechanical integrated rear axle, and the drive motor is directly installed on the rear axleto achieve higher transmission efficiency. The electric drive axle is designed with a two-gear box, which can automatically switch between high and low gears according to the road gradient, thus providing more power for climbing.

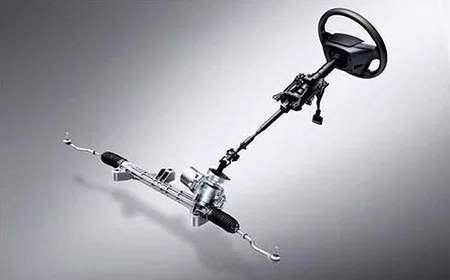

Electronic Power Steering System
The shuttle bus is equipped with an electronic power steering system, which can intelligently adjust parameters such as speed and steering wheel rotation angle to provide steering assistance suitable for the current driving state, thus improving the stability and controllability of the bus and reducing safety hazards caused by driver errors.

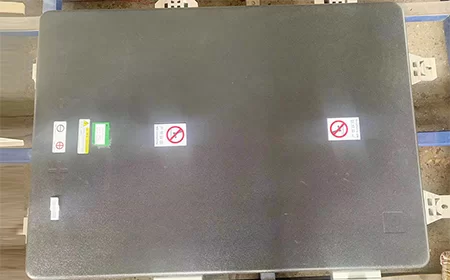

Optional Premium Battery Pack
Hulk Vehilce can offer high-quality maintenance-free lead-acid battery packs and BYD high-end lithium battery packs for users. Lead-acid batteries are relatively cheap, while BYD lithium batteries have better performance and environmental protection advantages. Customers can choose a suitable battery pack based on their needs and budget considerations.
