High Configuration Style Lithium Battery Electric Sightseeing Bus

Hulk Vehicle Product

High Configuration Style Lithium Battery Electric Sightseeing Bus

China 23 Passengers Electric Sightseeing Car with Lithium Battery

  • 23

    23

    Seats

  • 30km/h

    30km/h

    Speed

  • 30%

    30%

    Gradeability

  • 30KW

    30KW

    Power

Higher End Configuration and More Comfortable Experience

• 30KW BYD Water-cooled Permanent Magnet Synchronous Motor

• 120x50mm Double Longitudinal Beam Welded Frame

• 45kwh BYD Iron Phosphate Blade Battery Pack

• MOQ: 1

We also accept OEM and ODM orders for electric sightseeing buses with less than 23 seats, welcome to send us your requirements.

Inquire Now
Add To Inquiry Basket

Share To :

  • Parameter table
  • Detail display
  • User reviews
  • ItemAHGD-S High-end Lithium Battery Sightseeing Bus
    ModelAHGD-S-23
    Seats (including driver)23
    L*W*H (mm)6080x1950x2200 (excluding rearview mirrors on both sides)
    Wheelbase (mm)3050
    Tread (Front/Rear) (mm)1610/1550
    Min. Ground Clearance (mm)130
    Total Weight (kg)2100
    MotorBYD water-cooled permanent magnet synchronous motor 30kw, protection grade IP67
    Battery45kwh BYD iron phosphate blade battery pack with BMS remote battery management system
    ControllerEfficient, energy-saving, high-performance closed-loop vector control algorithm vehicle controller
    ChargerStandard fast and slow charging. The battery supports fast charging to more than 80% power in 30 minutes.
    Voltage332.8V
    Electronic Power SteeringStandard Equipped
    Suspension SystemBus-level front/rear longitudinal leaf springs + hydraulic damping shock absorption
    Braking SystemDual-circuit hydraulic brake, front disc and rear drum, with electronic vacuum assist
    Wheel Assembly185/65R15LT12PR all-steel radial tubeless load-bearing tire, 12-layer 6-hole steel wheel hub
    Lights & SignalsCombination headlights (including LED turn signals, position lights, with lenses),
    tail lights (including turn lights, position lights, reversing lights)
    Frame120x50mm double longitudinal beam welded frame, higher strength, safer and more reliable;
     using automotive coating electrophoresis technology, anti-corrosion standards reach automotive levels.
    BodyHigh-strength steel frame + fiberglass covering, SMC process fiberglass
    CeilingAluminum profile frame + transparent tempered glass
    SeatIndependent seat for driver, fiberglass bus seat for passengers
    Front WindshieldAutomotive laminated tempered glass
    Protective MeasuresStainless steel guardrail on the left, reversing handrail on the right, two-point safety belt
    InstrumentsLCD combination instrument (speed, current, power, vehicle failure, etc.)
    FloorBamboo floor + aluminum alloy pattern anti-slip floor (double floor combination)
    Endurance Mileage≥2200km (under standard working conditions)


  • Detail Display

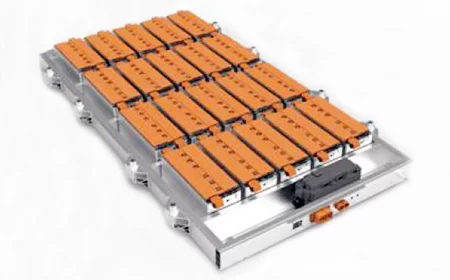

    • High Performance Lithium Battery

      High Performance Lithium Battery

      The 23-seats high-end lithium-ion sightseeing bus is equipped with a 45kwh BYD iron phosphate blade battery pack with a BMS remote battery management system. It has the advantages of long life and endurance, and has a higher safety level and higher power than other types of lithium batteries.

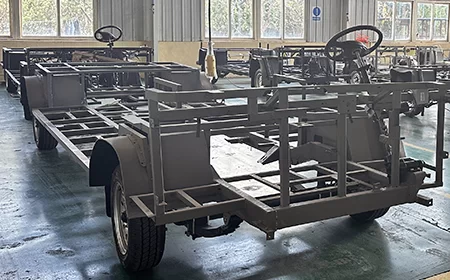

    • Overall Electrophoresis Anti-corrosion Base Frame

      Overall Electrophoresis Anti-corrosion Base Frame

      The base frame of Hulk 23-seats high-end lithium battery sightseeing bus adopts the overall automobile-level coating electrophoresis technology, which is more effective than local spraying in preventing erosion by corrosive factors such as air, water, chemicals, etc., and extending the service life of the base frame.

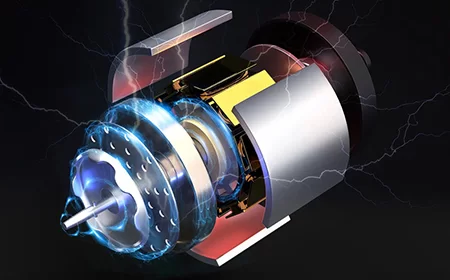

    • BYD Permanent Magnet Synchronous Motor

      BYD Permanent Magnet Synchronous Motor

      The 23-seats high-end lithium battery sightseeing bus adopts a 30KW world-renowned brand BYD water-cooled permanent magnet synchronous motor, with a protection level of up to IP67. It can output greater torque and higher efficiency, which can better save battery power and save more maintenance costs for customers.

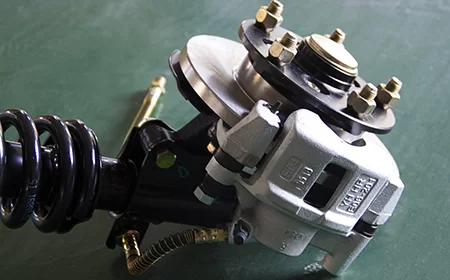

    • Good Braking System

      Good Braking System

      The 23-seats high-end lithium-ion sightseeing bus adopts a front disc and rear drum dual-circuit hydraulic brake, which has better thermal and water stability. It is also equipped with vacuum electronic assist to make it more stable and reliable. Even when going down steep slopes or on rainy days, the braking effect is very good and the vehicle is safer to drive.

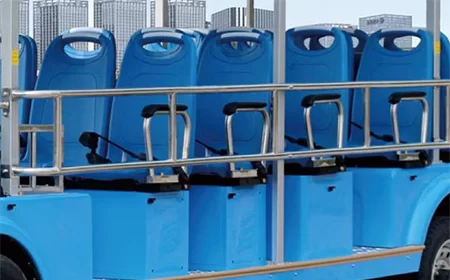

    • Reasonable Guardrails and Safety Belts

      Reasonable Guardrails and Safety Belts

      The 23-seats high-end lithium-ion sightseeing bus is equipped with a stainless steel safety guardrail on the left side, an armrest that can be flipped 135° on the right side of the passenger seat, and each seat comes with a two-point safety belt, which effectively prevents passengers from being injured while driving.

  • Customer’s Review

    Write a review
    • Lindsay Nicole

      2024.03.04

      Satified, the quality of the electric sightseeing bus is good! Sleek and modern, with all the features and functionality to take you where you need to go, even over rough terrain and it's street-ready where allowable.

    Rating:
