Affordable Fashion Style 14 Seater Electric Shuttle Bus Resort Car

Hulk Vehicle Product

Affordable Fashion Style 14 Seater Electric Shuttle Bus Resort Car

Fashion 14-Seater Electric Shuttle Bus for Airport, Resort or Scenic Spots

  • 14

    14

    Seats

  • 30km/h

    30km/h

    Speed

  • 15%-35%

    15%-35%

    Gradeability

  • 7.5-10KW

    7.5-10KW

    AC Motor

Driving in Fashion and Exploring Better Scenery!

• High Strength Anti-corrosion Chassis Frame

• MacPherson Independent Suspension & Mechatronic Rear Axle

• LCD Instrument Assembly & 8-Layer Vacuum Weighing Tire

• MOQ: 1

If you need other types or other numbers of seats for electric shuttle buses, please feel free to contact us.

Inquire Now
Add To Inquiry Basket

Share To :

  • Parameter table
  • Detail display
  • User reviews
  • SizeItemAHGD-KYH Electric Shuttle Bus
    ModelAHGD-KYH-14
    Seats (Including driver)14
    L*W*H (mm)5180*1580*2000
    Wheelbase (mm)2660
    Tread (mm)1340/1320
    Total Weight (kg)1380
    PerformanceMax Speed (km/h)30
    Min. Turning Radius (mm)≤6000
    Max. Gradeability15%Continuous Climbing Slope: 30% (Speed: 8km/h), Maximum Impact Slope: 35%
    ConfigurationMotor (kw)7.5kw AC10KW Permanent Magnet Synchronous Motor
    Battery (V Ah)Maintenance-free Lead-acid Batteries 6V 200Ah x 12UnitsLithium Iron Phosphate 72V200AH, Rated Energy 15.3kwh
    ControlEnpower AC ControlFengchuan Power Intelligent Motor Controller with Transmission Controller
    BrakeFront Disc and Rear Drum Hydraulic Brake
    SuspensionFront MacPherson, Rear Longitudinal Multi-plate Leaf Spring
    Rear AxleIntegrated Fully Floating, Reduction Ratio 17.79:1Semi Floating, Automatic Two Speed Ratio 29.82/15.06
    Wheel165/70R13LT 8PR Layer Vacuum Load-bearing Tire 5-Hole Steel Wheel Hub
    Seat MaterialThe driver: independently adjustable soft seat;
    Passengers:high-resilience sponge + leather-wrapped split-row seats or fiberglass seats.
    Electronic Power SteeringGear and Rack Type, with ESP Electronic Steering Assistance
    FloorLeather/Aluminum Alloy
    Safety BeltEssential
    TachographOptional


  • DETAIL DISPLAY

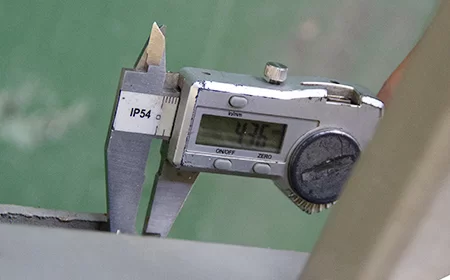

    • High Strength Anti-corrosion Chassis Frame

      High Strength Anti-corrosion Chassis Frame

      The main beam of the chassis frame of the shuttle bus is composed of 100X50mm large-section rectangular tubes. The thickness of the rectangular tubes is no less than 4mm. The surface has been treated by pickling, phosphating, electrophoresis, dipping, baking, etc., and has good anti-corrosion capabilities.

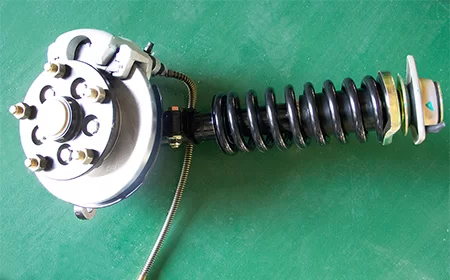

    • MacPherson Independent Front Suspension

      MacPherson Independent Front Suspension

      The suspension system is one of the important components in modern vehicles. The front suspension of Hulk Vehicle's electric shuttle bus adopts MacPherson independent suspension, which makes the vehicle have good controllability, comfortable ride and higher safety performance.

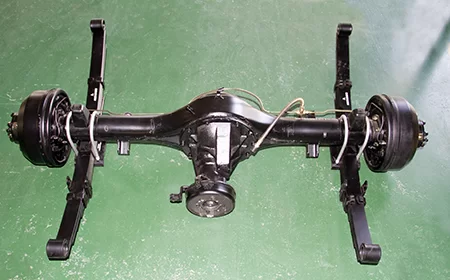

    • Mechatronic Rear Axle Design

      Mechatronic Rear Axle Design

      Hulk Vehicle's electric shuttle bus adopts an electromechanical integrated rear axle design, which has higher transmission efficiency. It is paired with rear longitudinal leaf springs, which can play a good buffering and vibration-absorbing role during driving.

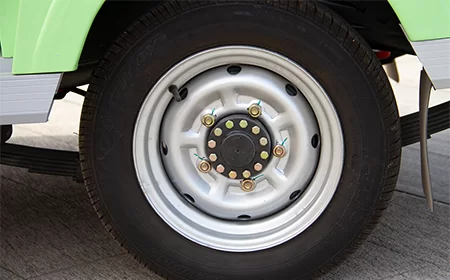

    • 8-Layer Vacuum Weighing Tire

      8-Layer Vacuum Weighing Tire

      The electric shuttle bus uses 8-layer vacuum weighing tires, which are safe and wear-resistant, have strong road gripping ability, and are quiet and comfortable when driving, giving passengers a more comfortable riding experience.

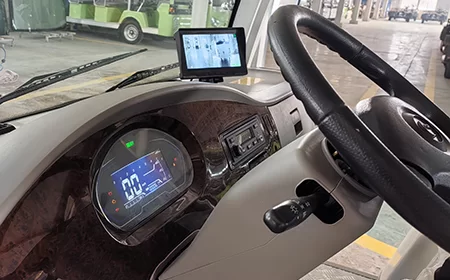

    • LCD Instrument Assembly

      LCD Instrument Assembly

      The Hulk Vehilce electric shuttle bus uses a vehicle-specific LCD instrument assembly with accurate digital display, relatively comprehensive information and a strong sense of technology, allowing the driver to understand the various operating conditions of the vehicle at a glance.

  • Customer’s Review

    Write a review
    • Luis Alfonso Tenorio

      2024.01.22

      These shuttle buses look amazing, are high tech, and pretty quick. Would definitely recommend purchasing from this group!

    Rating:
