Top Configuration 19-23 Seater BYD Lithium Battery Electric Sightseeing Bus
Street Legal 19-23 Seater Open Style EV Tourist Sightseeing Bus
19-23
Seats
30km/h
Speed
30%
Gradeability
30KW
AC Motor
Ride the Future in Comfort and Efficiency!
• Fully Floating Commercial Vehicle Grade Rear Axle
• BYD Battery Pack, Controller & AC Motor
• ESP Electronic Steering Assist
• MOQ: 1
If you want to customize sightseeing buses with different seat quantities, welcome to send us your requirements.
| Item | AHGD-S High-end Lithium Battery Sightseeing Bus | |
| Overall dimensions L*W*H (mm) | 5350×1930×2260 | 5900×1930×2260 |
| Seats (including driver) | 19 | 23 |
| Tread (Front/Rear) (mm) | 1600/1610 | 1600/1610 |
| Wheelbase (mm) | 3400 | 3400 |
| Total Weight (kg) | 1800 | 1950 |
| Max. Speed (km/h) | 30 | 30 |
| Min. Turning Radius (mm) | 8500 | 8500 |
| Suspension System | Bus-level front/rear longitudinal leaf springs + hydraulic damping shock absorption | |
| Wheel Assembly | 185/65R15LT 12PR Radial Tubeless Tire | |
| Steering System | Recirculating ball steering gear, with ESP electronic power steering | |
| Braking System | Front disc and rear drum, dual-circuit hydraulic brake | |
| Brake Vacuum Assist | Standard Equipped | |
| Frame | 120x50mm double longitudinal beam welded frame, higher strength, safer and more reliable; using automotive coating electrophoresis technology, anti-corrosion standards reach automotive levels. | |
| Lights | combination headlights (turn, high and low beam lights with lenses, LED daytime running lights) | |
| Seat | Independently adjustable soft seat for the driver, optional high-resilience sponge + leather-wrapped split row seats/fiberglass bus seats for passengers | |
| Motor | Foton Permanent Magnet Synchronous Motor 30KW, Liquid Cooling, IP67 | |
| Battery | BYD Lithium Iron Phosphate Battery 332.8V135AH, Rated Capacity 44.9KWH | |
| Controller | BYD high-voltage distribution unit three in one, liquid cooling, IP67, working environment temperature suit: -40 °~65 ° | |
| Charger Power & Charging Time | 6.6KW/7h (National standard fast and slow charging plug, fast charging can charge 80% in 50min, fully charged in 2h) | |
| Rear Axle | Full floating commercial vehicle rear axle. Reduction ratio 12.94 | |
| Max. Gradeability | Continuously climb 25% (speed of 16km/h), maximum slope of 30% | |
| Speed Regulation Method | Stepless Speed Change | |
| Full Load Range (km) | 260 (On flat roads and at normal temperatures ) | |
DETAIL DISPLAY

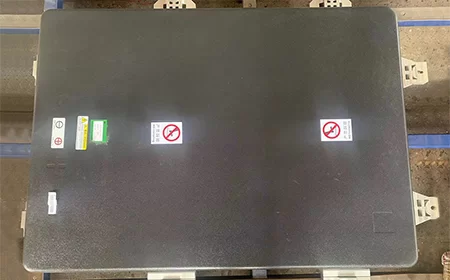

BYD Battery Technology
The sightseeing bus uses a lithium iron phosphate battery pack developed by BYD, which is known for its high energy density, long life and high safety. It performs well in temperature changes and charge and discharge cycles, and can provide long-term stable power to ensure that the sightseeing bus can run smoothly under different road conditions. The efficient battery management system (BMS) also ensures the safety and durability of the battery.

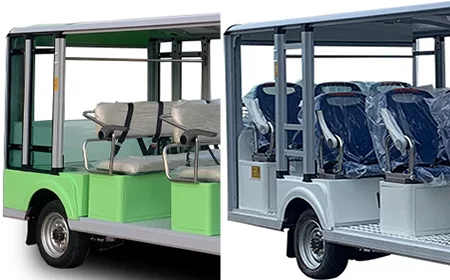

Comfortable Seats with Optional Materials
The seats of this sightseeing bus are designed with the comfort and diverse needs of passengers in mind, and offer a variety of material options, including premium leather and high-quality fiberglass seats. The seats are ergonomically designed, providing good support and comfort, suitable for long rides. In addition, the seats are equipped with seat belts and adjustable functions, further enhancing the passengers' riding experience.

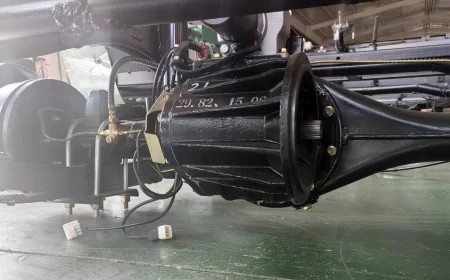

Fully Floating Commercial Vehicle Grade Rear Axle
The sightseeing bus is equipped with a fully floating commercial vehicle grade rear axle, which has extremely high durability and load-bearing capacity. The 12.94 reduction ratio design enables the vehicle to maintain good power output and fuel efficiency at different speeds. This rear axle design not only improves the stability and handling of the vehicle, but also enhances its adaptability under various road conditions.

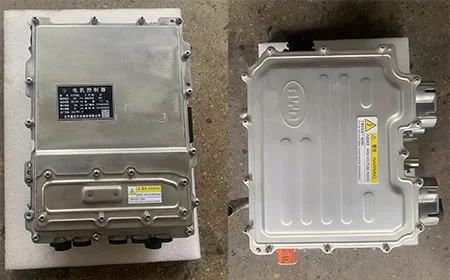

Other BYD Vehicle Components
In addition to advanced battery technology, the sightseeing bus also uses BYD's leading electronic control system and high-efficiency motors. The electronic control system includes an intelligent control unit and an electric power distribution system to ensure the vehicle's optimal performance and energy efficiency under various operating conditions. The high-efficiency motor provides strong power output, can quickly respond to the driver's operation, and provide smooth and powerful acceleration performance.

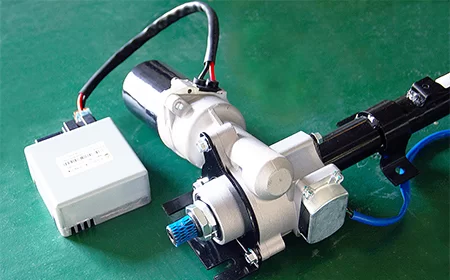

ESP Electronic Steering Assist
The sightseeing bus uses an advanced recirculating ball steering gear, combined with the ESP electronic steering assist system, to provide precise steering operation. The ESP electronic steering assist system can not only provide additional steering assistance at low speeds to reduce the burden on the driver, but also improve steering stability and safety at high speeds. The system also has an automatic correction function to ensure that the vehicle always maintains the best driving trajectory.
